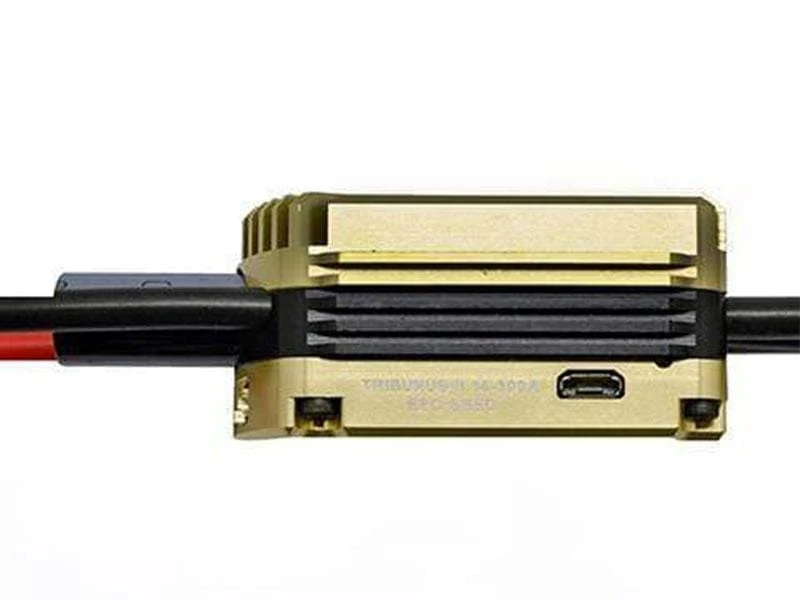

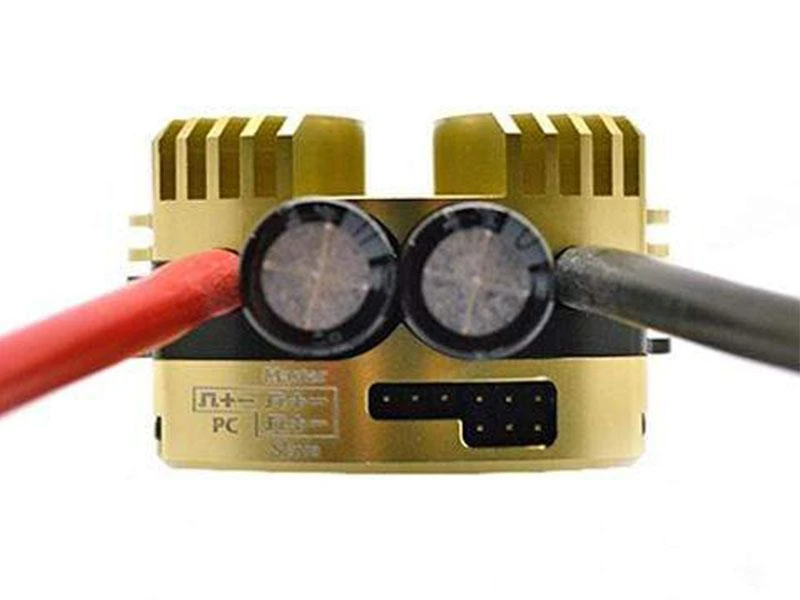

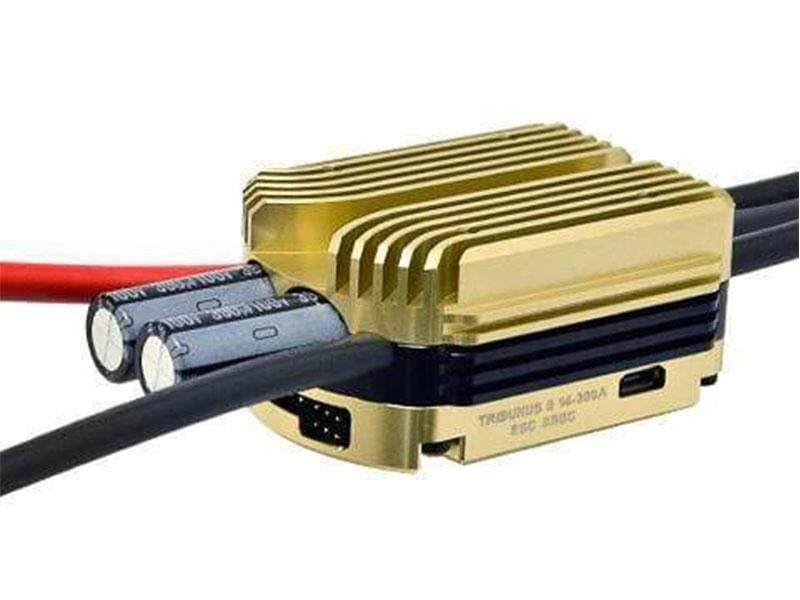

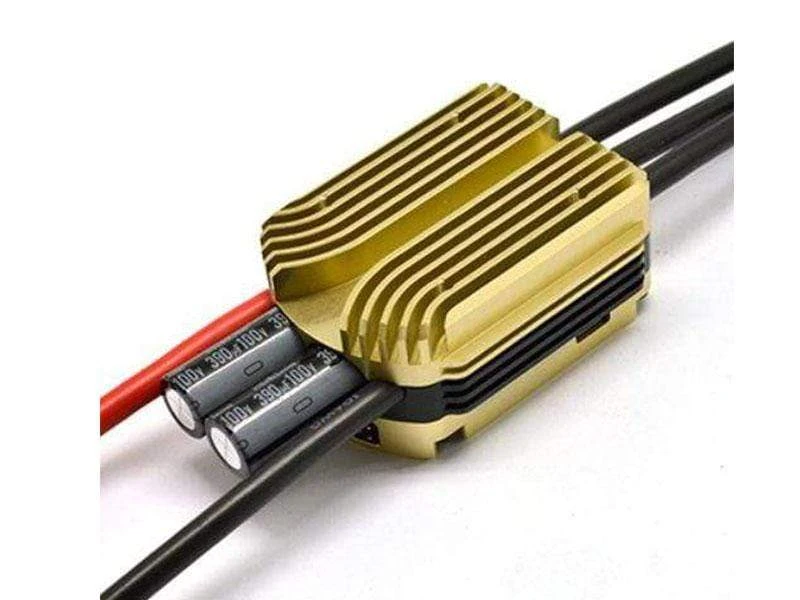

Scorpion Tribunus II 14-300A ESC SBEC
Original price was: $347.00.$98.99Current price is: $98.99.
- Fast reliable delivery options
- High quality products, low prices.
- The quality solution for all your needs.
- Efficient and effective customer service, online.
Product Description
Airplane and Heli mode,
Stored and unstored Governor, external governor.
Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3.
ESC setup can be set by Mikado V control Radio.
PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.
Supported HvLi battery 14S total 61V **.
Size: 90.7mm x 50mm x 31.9mm
Weight: 238 Grams.
**Using up to16s HV Lipo will not void the warranty.
Scorpion Tribunus ESC {Tutorial} – Connecting to PC Downloading SProto + Firmware Updates. Produced by Kyle Dahl
Mikado Proving Ground Produced by Kyle Dahl
 Scorpion Tribunus 14-300A – User Manual
 Scorpion Tribunus Heli Program Sproto
 Scorpion V Link II Cable CH340 Driver (For all ESC use)
 How to update Tribunus firmware
 How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO
 How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Jeti
 DIY your spark suppressor system on a ESC
Â
Specifications
| Max Continuous Current | 300 Amps |
| Peak Current | 400Amps |
| Operating Voltage Range | 14-61 Volts ** |
| BEC Output voltage: | 5.1V to 8.3V adjustable. |
| Max Continuous BEC Output | 10 Amps @ 8.3 V |
| Peak BEC Output | 30 Amps/1s @ 8.3 V |
| On Resistance | 0.75 mOhms *2 |
| Size | 90.7mm x 50mm x 31.9mm (3.57 x 1.97 x 1.26 in) |
| Weight (Without Connectors) | 244g (8.61 oz) |
| Drive frequency | 8kHz – 32kHz |
Weight including packaging
627g
