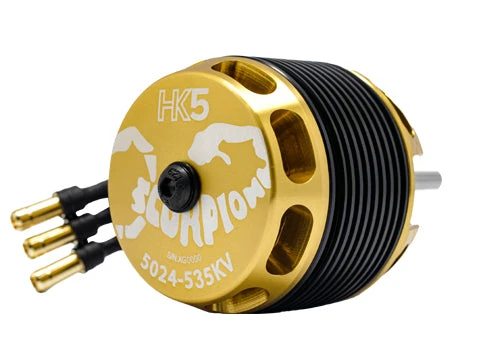

Scorpion HK5-5024-535KV (6 X 36mm Shaft)
Original price was: $389.99.$97.99Current price is: $97.99.
- Fast reliable delivery options
- High quality products, low prices.
- The quality solution for all your needs.
- Efficient and effective customer service, online.
Product Description
We introduce the fifth generation of Scorpion’s renowned and award winning “HK – Series” motors. The Scorpion “HK5 – Series”
The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.
The HK5-5024-535kv is designed primarily for High Power 700 class helicopters. With the larger Stator Diameter, it provides more torque and more power, for equal weight as compared to the previous HKII-4530-540kv motor.
Specifications
| Motor Kv | 535KV RPM/Volt |
| Weight | 598.0g Grams ( 21.09oz) |
| Motor Body Dimensions | 62.8mm x 61.40mm (2.47″ x 2.42″) |

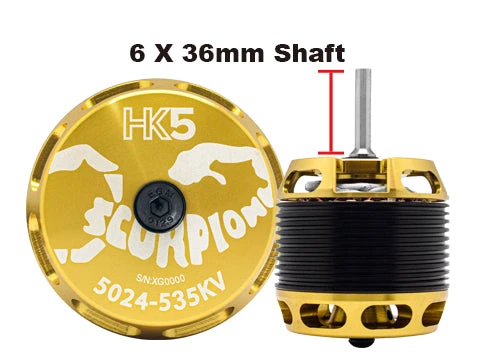

| External Shaft Dimensions | 5.98mm x 36mm (0.235″ x 1.417″) |
| Continuous Current | 130 Amps |
| Continuous Power | 5772 Watts |
| Peak Current | 260A (2 seconds) |
| Peak Power | 11500 Watts (2 seconds) |
| Max Lipo Cell* | 12s |
| Stator Diameter | 50 mm (1.97 in) |
| Stator Thickness | 24 mm (0.94 in) |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 5T |
| Motor Wire | 1.6mm |
| *Higher Cell Count possible with appropriate gear ratio adjustment | |

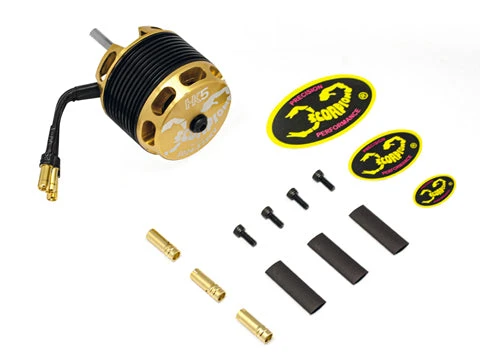

Included in the Box
1 X HK5-5024 BLDC Motor
3 x 6mm Female Bullet Connectors
3 x Heat Shrink
1 x Accessory bag / Mounting Hardware
Weight including packaging
1g
